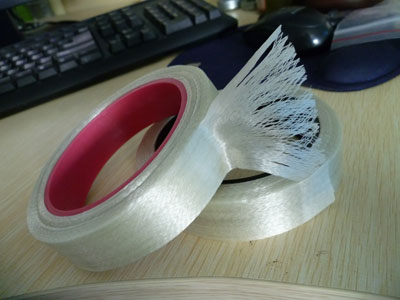

Polyester Resin Impregnated Fiberglass Web Banding Tape


OMEN Polyester Resin Impregnated Fiberglass Web Banding Tape consist of parallel twisted E-glass yarns preimpregnated with a special thermosetting polyester resin. The banding tape is pliable and tacky. Its web structure provides easy unwind without glass strands separation and overlapping.The product contributes the characteristics of high tensile strength, high resistance to shocks, high modulus of elasticity, dimensional stability as well as no magnetically confining and eddy currents losses, which can be widely used as ideal banding materials for electrical motors, transformers and lightning arresters.

sequence no. Item Index
1 Volatile content(%) ≤5.0
2 resin content(%) 27±2
3 soluble resin content(%) ≥90
4 solidify easy to peel off and no adhesion
5 tensile strength before curing  (N/10mm width) ≥5.00×102(0.17mm thickness )
≥1.00×103(0.30mm thickness)
6 normal tensile strength when circular/Mpa ≥9.00×102
7 thermal tensile strength when circular/ MPa ≥5.60×102
8 break elongation when circular(%) ≤4.0
9 tensile modulus of elasticity/Gpa ≥45
10 long time thermal class Not less than 155
