| Normal Aluminium Copper clad laminate |

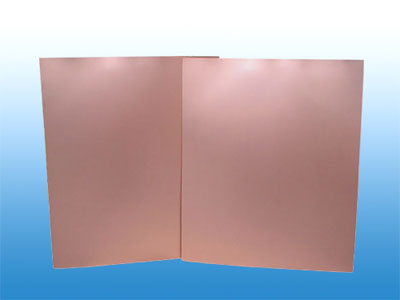

Normal Aluminium Copper clad laminate
Aluminium base copper clad laminate is composite epoxy glass/aluminium based copper clad laminate which has excellent flame retardant, high mechanical strength, dimensional stability etc.Especially it has very good heat sink,electromagnetic shielding and solder float. It’s widely used for the modifier and sparker on fire for motorcycle and mobile,power LED,sound box, power supply module and acoustics shielding system etc.
Thickness: 0.8-3.0 mm
Copper: 18 μm, 35 μm, 70 μm,105 μm,140 μm
other thickness according to negotiation
Size:0.5x0.5mm,0.5x0.6m,0.5x1m,0.6x1m,0.33x0.38m,0.5x0.6m,0.38x0.66m.
Peel Strength(Min): 1.9 N/mm.
Break-down Voltage(Min): 2.1 KV.
Heat Resistance(Min):1.9 ℃/W
Dielectric Constant (Max)1MHz:3.8
Bulkresistance:4x108MΩ.m C-96/35/90 5x108MΩ.m
Surface Resistance:7x109 M Ω C-96/35/90 3x109MΩ |
|
|
|
