AC9129 PVC Butterfly Valves

Description:

1.Gear Type

2.Size: 2" to 24"(50mm to 600mm)

3.Standard: DIN, BS, ANSI, CNS, and JIS

4.Working pressure 200 PSI, Rating @73^oF

5.Stem material: 45# carbon steel, 2Cr13, SUS304, SUS316

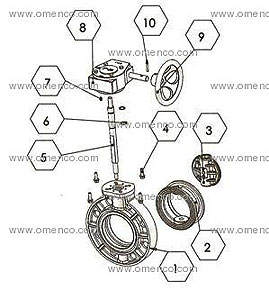

NO	PART	MATERIAL	QTY
1	BODY	PVC/CPVC/FRPP/PP	1
2	SEAT SEAL	EPDM/FPM	1
3	DISC	PVC/CPVC/FRPP/PP	1
4	BOLT	STEEL	4
5	STEM	STEEL304/316	1
6	O-ring	EPDM/FPM	2
7	KEY	STEEL	1
8	GEAR BOX	IRON	1
9	HANDLE WHEEL	IRON	1
10	SET PIN	STEEL	1

SIZE	"	4"	5"	8"	10"	12"	14"	16"	20"
SIZE	DN	100	125	200	250	300	350	400	500
ØD		228	258	344	412	460	500	565	670
P.C.D. ØD1	DIN	180	210	295	350	400	460	515	620
	ANSI	191	216	298	362	432	476	540
	JIS	175	210	290	355	400	445	510
Ød		98	122	199	255	302	345	395	490
L		54	64	88	98	108	88	98	135
Ø1		145	280	280	280	280	380	380	280
L1		120	200	200	220	220	280	280
H1		140	168	215	260	280	410	490	520
H		340	385	487	551	595	670	770	865
M		120	180	180	180	180	250	250
N		90	100	100	130	130	220	220
n-ØE	DIN	8_19	8_19	8_23	12_25	12_25	16_25	16_27	20_32
	ANSI	8_19	8_19	8_23	12_25	12_25	12_29	16_29
	JIS	8_19	8_19	12_23	12_25	16_25	16_25	16_27
PN	PSI	150	150	150	100	100	60	60	60
PN	Mpa	1	1	1	0.6	0.6	0.4	0.4	0.4
Weight	kg/pc	7.2	18	22	25	29	45	55	67
