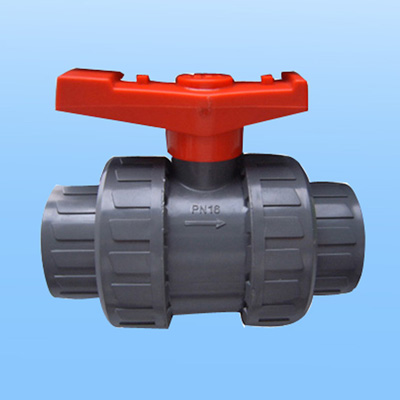

| AC9123 PVC Double Union Ball valve |
 |
| Description:
1. Size: 1/2" to 4"(15mm to 100mm)
2.Standard: DIN, BS, ANSI, CNS, JIS
3.Fits schedule 40 and 80 pipe, Color: white, grey,
4.With socket and threaded end
5.1/2"-2"Working pressure 235 PSI, Rating @73oF, 2-1/2" to 4" Working pressure 150 PSI, Rating @73oF
Inner packing: polybags, color boxes |
|

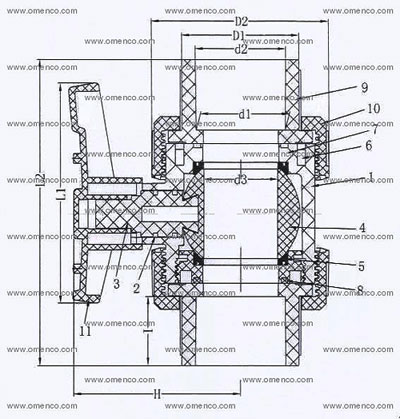

NO. |
PART |
MATERIAL |
Q'TY |
1 |
BODY |
U-PVC |
1 |
2 |
STEM O-RING |
NBR |
2 |
3 |
STEM |
U-PVC |
1 |
4 |
BALL |
U-PVC |
1 |
5 |
SEAT SEAL |
TPE |
2 |
6 |
CARRIER O-RING |
NBR |
1 |
7 |
SEAL CARRIER |
U-PVC |
1 |
8 |
UNION O-RING |
NBR |
2 |
9 |
END CONNECTOR |
U-PVC |
2 |
10 |
UNION NUT |
U-PVC |
2 |
11 |
HANDLE |
ABS |
1 |
|
| |
mm |
Size |
d1 |
Thread d2 |
DIN d2 |
JISd2 |
BS d2 |
ANSI d2 |
d3 |
D1 |
D2 |
I |
H |
L1 |
L2 |
Socket |
1/2'' |
19.85 |
1/2'' |
Φ20 |
Φ22 |
Φ22 |
Φ21.34 |
15.15 |
27.7 |
49.7 |
17.75 |
51.3 |
66.5 |
88.1 |
3/4'' |
24.95 |
3/4'' |
Φ25 |
Φ26 |
Φ26.2 |
Φ26.67 |
20.9 |
34.6 |
58.6 |
23 |
57.4 |
78.8 |
111.5 |
1'' |
32.2 |
1'' |
Φ32 |
Φ32 |
Φ34 |
Φ33.4 |
24.8 |
41.5 |
66 |
24.65 |
61.05 |
86.8 |
119.85 |
1 1/4'' |
39.8 |
1 1/4'' |
Φ40 |
Φ38 |
Φ42 |
Φ42.16 |
29.8 |
50.1 |
78.7 |
31.8 |
73.3 |
99.1 |
142 |
1 1/2'' |
49.8 |
1 1/2'' |
Φ50 |
Φ48 |
Φ48 |
Φ48.26 |
40.3 |
61.8 |
93.4 |
35.7 |
85.65 |
113.5 |
158.5 |
2'' |
62.85 |
2'' |
Φ63 |
Φ60 |
Φ60 |
Φ60.33 |
50.5 |
75.2 |
109 |
40.2 |
101 |
132.2 |
179.5 |
|
|
|
