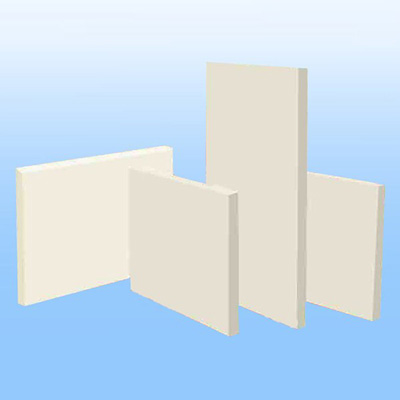

CF007 Ceramc fiber board

Ceramic fiber board CF007

All kinds of ceramic fiber boards, adopting corresponding blowing fiber (COM. STD. HA. HP. HZ) as the material, are produced by vacuum formed technology.
All kinds of ceramic fiber boards, do not only possess the same function of fiber, but also have hard texture, excellent toughness and intensity, and excellent erosion resistance.

Tehnical index

Item		COM	STD	HP	HA	HZ
Specification temp ( ^oC )		1260	1260	1260	1400	1400
Working temp ( ^oC )		< 1000	1000	1100	1200	1350
Color		White	White	White	White	White
Density (kg/m3)		260 320	260 320	260 320	260 320	260 320
Rate of liner (%) (24h.128kg/m3)		-4 (1000 ^oC )	-3 (1000 ^oC )	-3 (1100 ^oC )	-3 (1200 ^oC )	-3 (1350 ^oC )
Rate of thermal conductivity (W/m. K) (128kg/m3)		0.085 (400 ^oC ) 0.132 (800 ^oC ) 0.180 (1000 ^oC )	0.085 (400 ^oC ) 0.132 (800 ^oC ) 0.180 (1000 ^oC )	0.085 (400 ^oC ) 0.132 (800 ^oC ) 0.180 (1000 ^oC )	0.085 (400 ^oC ) 0.132 (800 ^oC ) 0.180 (1000 ^oC )	0.085 (400 ^oC ) 0.132 (800 ^oC ) 0.180 (1000 ^oC )
Tensile Strength (MPa) (128kg/m3)		0.5	0.5	0.5	0.5	0.5
Chemical composition(%)	A12O3	44	46	47-49	52-55	39-40
	A12O3+SiO2	96	97	99	99	-
	A12O3+SiO2+ZrO2	-	-	-	-	99
	ZrO2	-	-	-	-	15-17
	Fe2O3	< 1.2	< 1.0	0.2	0.2	0.2
	Na2O-K2O	≤0.5	≤0.5	0.2	0.2	0.2

Specification (mm): 600x400x10-50mm; 900x600x10-50mm, 1200x1000x10-50mm,other made according to customer's requirement.
